Technology Update: 125% Increase in Efficiency
Scientists Increase Solar Panel Efficiency by 125% with Novel Design



In a previous post, we explained how infinitesimally small particles of light called photons are harnessed to create solar energy.

Basically, electrons from the top electron-rich half of a solar panel travel through a connecting wire to the bottom electron-poor half after being “knocked” free by photons of sunlight. But one of the strangest aspects of light is what scientists call its wave-particle duality.

What that means is that, while light sometimes behaves like its composed of particles as when it imparts momentum to electrons, there are other contexts in which it can only be understood as a wave.  And an international team of researchers have achieved a stunning 125% increase in solar-panel efficiency by focusing on the wave-like side of light’s nature.


Wave vs. Particle


Waves and particles may not seem all that different at first. But, at an intuitive level, we all understand that they behave in totally different ways.

To bring these intuitions to the surface, imagine that 20 guns are lined up and fired in a parallel direction. The firing range is empty except for a thick bullet-proof barrier in the middle that’s in front of the center ones.





Two things are true of anyone standing behind the barrier.

  • They won’t get hit by any of the bullets.
  • But they will, nonetheless, hear the sound the sound of them being fired
In other words, though the bullets won't reach behind the barrier, the sound will.

That’s because bullets are particles whereas sounds are waves. And unlike a stream of particles, when a wave hits the edge of an obstruction, it has the ability to bend around it. You can actually see it in this photo of ocean waves striking a barrier.




Diffraction

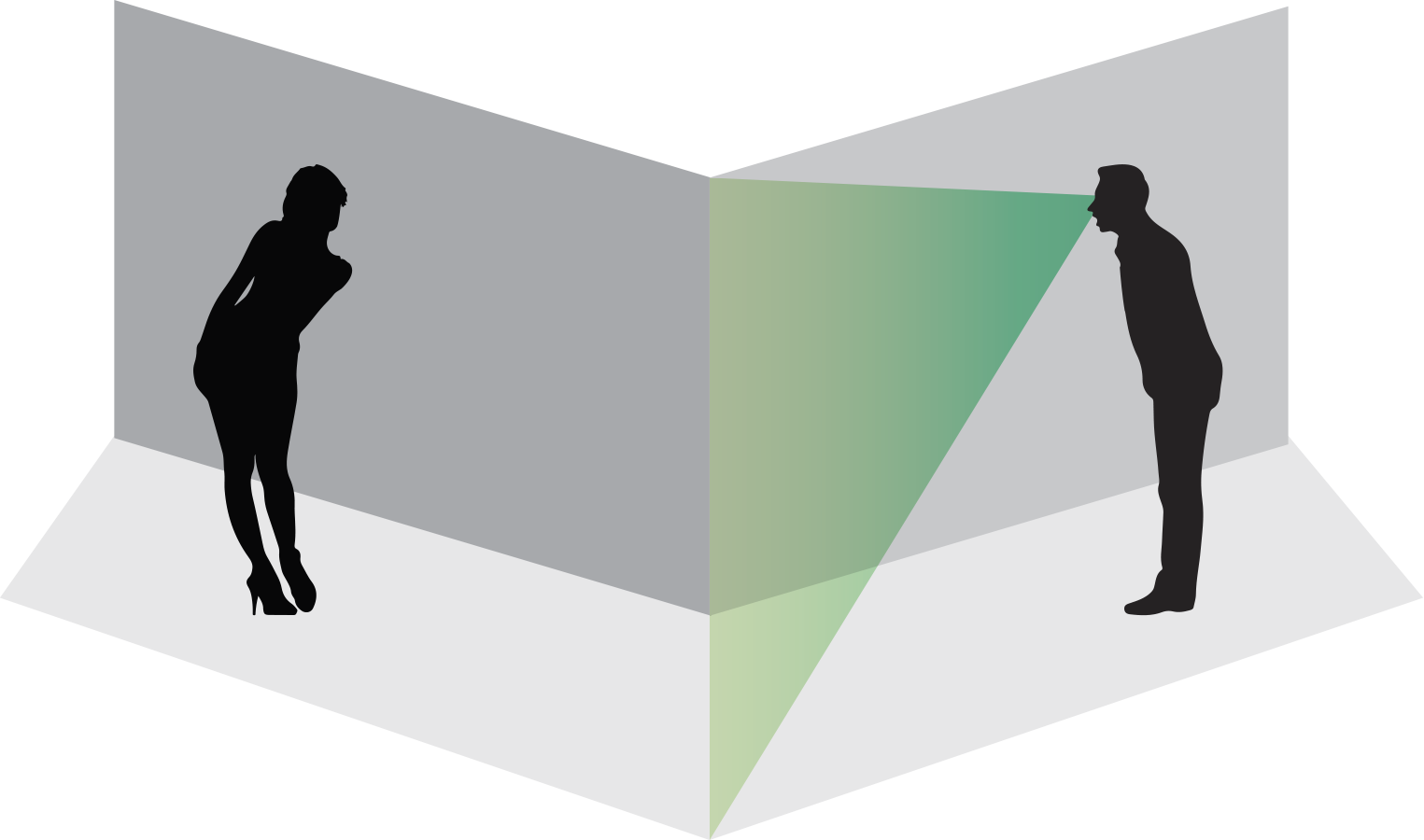

When a wave bends around an obstruction it’s called diffraction. And, because sound is composed of waves, diffraction is the reason you’re able to hear someone speaking from around corner.



But this raises a crucial question. If light behaves like a wave just like sound, how come you can’t see someone from around a corner as well?

The answer is that a wave can only bend around something that’s around the same size as its wavelength. Since the sounds audible to the human ear range to wavelengths of over 50 ft, they have no trouble bending around a 10-foot-high wall, as in the above illustration.

The wavelengths of visible light, on the other hand, are microscopically small, which means they’re unable to bend around common everyday objects.



In fact, light has such small wavelengths that it will only bend around obstructions that are too small for us to even see.

Which is exactly what the scientists collaborating from Portugal, the UK, and Brazil have etched into the surface of their new solar panel design as a simple way to increase the amount of electricity generated.


The Invisible Edge

Below is a blown-up image of their new panel design. By placing raised pairs of parallel bars in a checkerboard pattern on the surface of an ultra-thin one-millionth-of-a-meter thick (1 μm) solar panel, they were able to increase the amount of energy produced by a remarkable 125%.



Those raised bars are just 190 billionths of a meter tall, which is small enough to bend any incoming sunlight that strikes them and make it hit the lower surfaces at a better angle. That means that more photons are absorbed and, hence—going back to the particle nature of light—more electrons get knocked free, generating more electricity.

Lead researcher Dr. Christian Schuster from the University of York explained:

  • "Our investigations show that our idea actually rivals the absorption enhancement of more sophisticated designs – while also absorbing more light deep in the plane and less light near the surface structure itself."

Dr. Schuster went on to note the possible future applications of his remarkable discovery:

  • “In principle, we would deploy ten times more solar power with the same amount of absorber material: ten times thinner solar cells could enable rapid expansion of photovoltaics, increase solar electricity production, and greatly reduce our carbon footprint. In fact, as refining the silicon raw material is such an energy-intensive process, ten times thinner silicon cells would not only reduce the need for refineries but also cost less, hence empowering our transition to a greener economy.”

There’s still a lot more work to be done before we’re even close to seeing anything like Dr. Schuster’s novel design in the commercial solar market. But it’s just one among many scientific breakthroughs that are occurring every day as more and more researchers focus on solar as our best bet for a clean and renewable energy source.

And there’s little question that the burgeoning solar energy market has an even brighter future.
